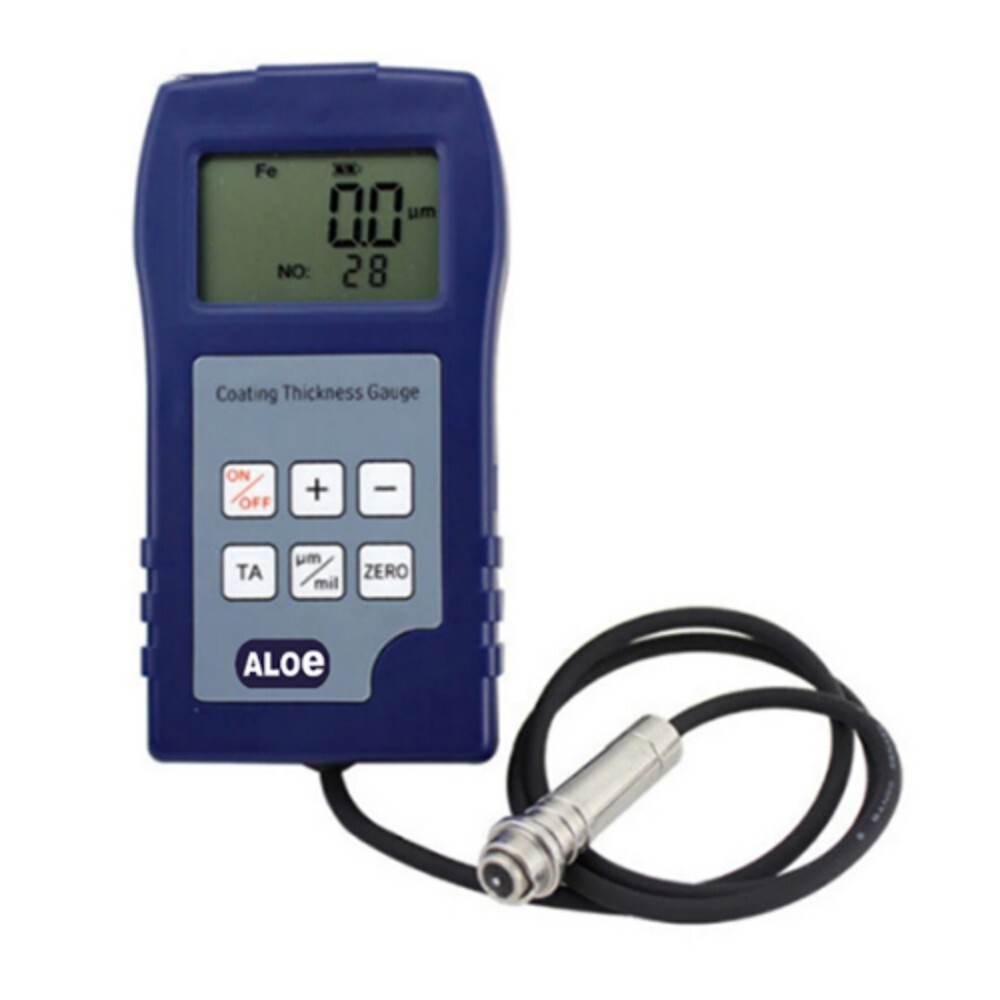

ACT-FNF Coating Thickness Gauge

Name: ACT-FNF Coating Thickness Gauge
Brand: Aloe Technologies India Private Limited
Price: 8000 INR
Availability: InStock

Price 8000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ACT-FNF Coating Thickness Gauge Specification

Equipment Type
Coating Thickness Gauge

Application
Measurement of coating thickness on ferrous and non-ferrous substrates

Display Type
LCD digital display

Automation Grade
Semi-automatic

Operating Voltage
3V

Max Height
140 mm

Features
Auto power off, low battery indicator, selectable measurement units (m/mils)

Power Supply
2 x 1.5V AAA alkaline batteries

Specimen Size
Minimum 20 mm 20 mm

Resolution
0.1 m

Interface Type
USB (data export)

Response Time
<1 second

Test Range
01250 m (steel), 01250 m (non-ferrous)

Port Size
Standard probe 13 mm

Number of Specimens
Single/multiple selectable

Temperature
0C40C

Accuracy
(2%+1 m)

Hardness
Probe tip: ruby (high hardness)

Mounting Type
Handheld

Measuring Range
01250 m

Humidity
20%90% RH, non-condensing

Usage
Industrial, laboratory, quality control

Capacity
500 data readings

Machine Weight
120 g (including battery)

Test Speed
1 second/reading

Test Width
Up to 50 mm

Test Stroke
02 mm (for standard probe)

Control Mode
Automatic and Manual

Calibration Mode
Single-point and two-point calibration

Data Storage
500 measurement values

Minimum Curvature Radius (Convex)
5 mm (F probe); 25 mm (N probe)

Statistical Function
Displays mean, max, min, number of readings

Battery Life
Approx. 60 hours continuous operation

Languages Supported
English, selectable

Backlight Display
Yes

Probe Type
Integral and external probes available

Alarm Function
Upper/lower limit alarm

Minimum Substrate Thickness
0.5 mm (F probe); 50 m (N probe)

ACT-FNF Coating Thickness Gauge Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About ACT-FNF Coating Thickness Gauge

Take a look at our hi-tech ACT-FNF Coating Thickness Gauge which has been designed for rapid measurement of coating and cladding material. The gauge measures the coating thickness precisely and non-destructively. A compact device, it can be easily carried to project sites while a mandatory device in the laboratory for measuring coating and cladding thickness. It employs different probes through which different measurement parameters can be fulfilled. The gauge can be applied in manufacturing, and chemical and metal processing works. It is also suitable for undertaking commercial inspection tasks. This Coating Thickness Gauge features an LCD screen and control buttons for operating and reading the measurement results.

Versatile Measurement Capabilities

The ACT-FNF Coating Thickness Gauge supports both ferrous and non-ferrous substrate testing using integral or external probes. Its wide measurement range from 0-1250 m, high resolution down to 0.1 m, and selectable single or multiple specimen modes allow precise measurements in various environments. Whether in quality control or on-site inspection, this gauge is designed for accuracy and efficiency.

User-Friendly Digital Display & Controls

Equipped with an LCD digital backlight display, users can easily view readings and statistics such as mean, max, min, and number of readings. The device supports English language selection, automatic/manual control modes, and quick navigation via the interface. Alerts for battery status and upper/lower limit exceedance ensure reliable operation without interruptions.

Data Management & Connectivity

This gauge offers storage for up to 500 measurement values and supports data export via a USB interface for seamless record-keeping and analysis. With calibration modes (single-point and two-point), users can optimize accuracy for different jobs. The auto power-off feature economizes battery usage, with approximately 60 hours of continuous operation provided by 2 AAA batteries.

FAQ's of ACT-FNF Coating Thickness Gauge:

Q: How does the ACT-FNF Coating Thickness Gauge measure different substrates?

A: The ACT-FNF Coating Thickness Gauge uses either an integral or external probe to measure coating thickness on both ferrous and non-ferrous substrates. It automatically detects the substrate type and adjusts the measurement method accordingly for accurate readings.

Q: What is the data storage capacity and how can I export measurements?

A: The gauge can store up to 500 measurement values in its internal memory. Stored data can be exported to a computer using the USB interface, making record-keeping and analysis straightforward and efficient.

Q: When should I recalibrate the gauge, and what calibration modes are available?

A: Recalibration is recommended whenever measurement accuracy is critical or after changing probe types or substrate materials. The device supports both single-point and two-point calibration, allowing users to fine-tune measurements for the best accuracy in various testing conditions.

Q: Where can this coating thickness gauge be effectively used?

A: The ACT-FNF Coating Thickness Gauge is suitable for use in industrial settings, laboratories, and quality control departments. Its robust build and precise measurement capability make it ideal for inspecting coated parts in manufacturing, automotive, aerospace, and other industries.

Q: What is the process for taking a measurement with this device?

A: Simply power on the gauge, select the desired settings and probe, then place the probe on the test specimen. The LCD display provides a reading in less than one second, along with statistical details if required. Measurements can be stored for later review or exported via USB.

Q: How does the upper/lower limit alarm function benefit users?

A: The gauge allows users to set upper and lower thickness limits. If a measurement falls outside of these set parameters, the device will trigger an alarm, alerting the operator to potential quality issues immediately.

Q: What advantages does the backlight LCD and automatic power-off offer?

A: The backlit LCD assures clear visibility of measurement data in low-light environments, while the auto power-off function conserves battery life, ensuring up to 60 hours of continuous use.
